Starting at 985 000$ CAD

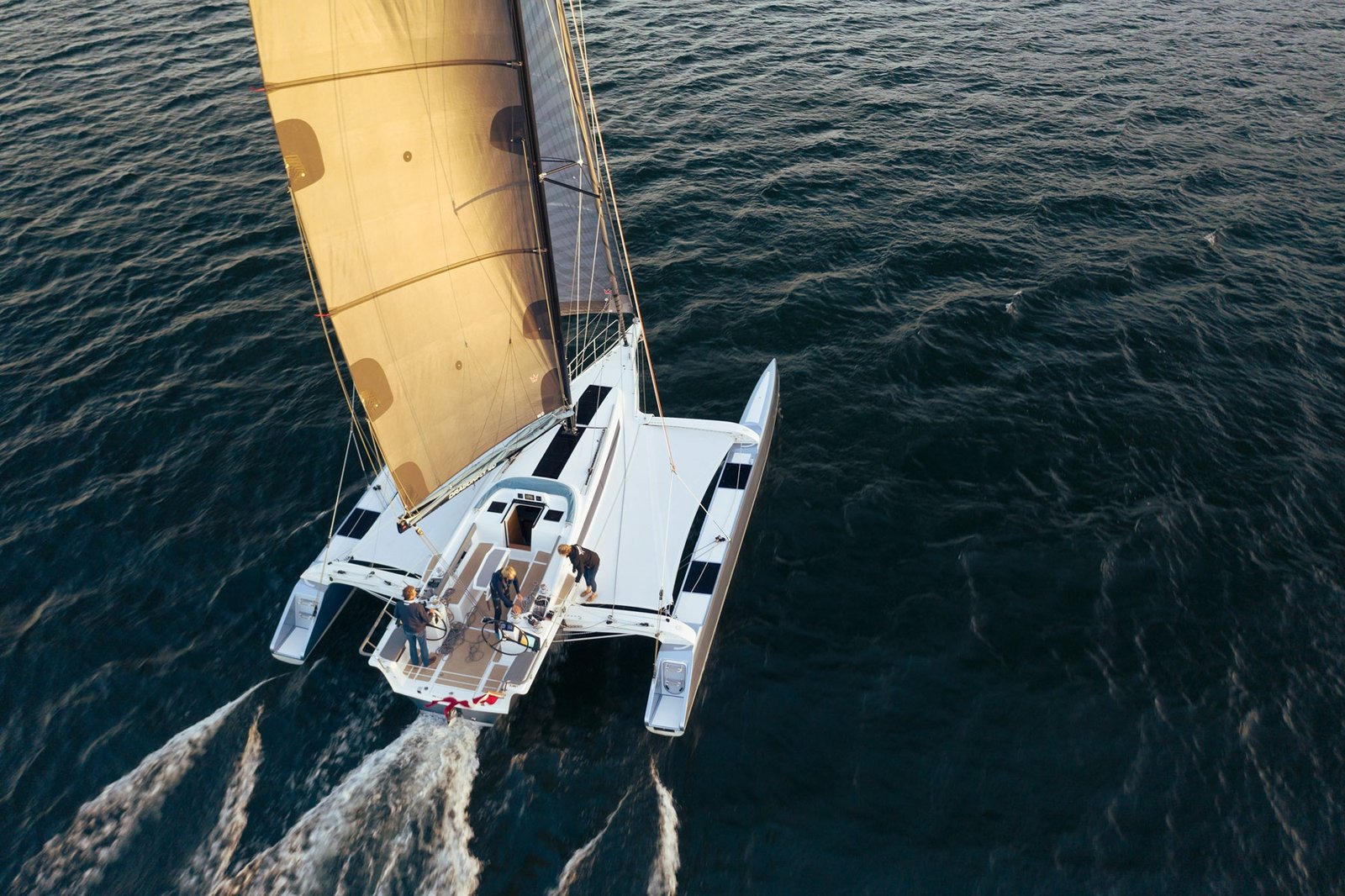

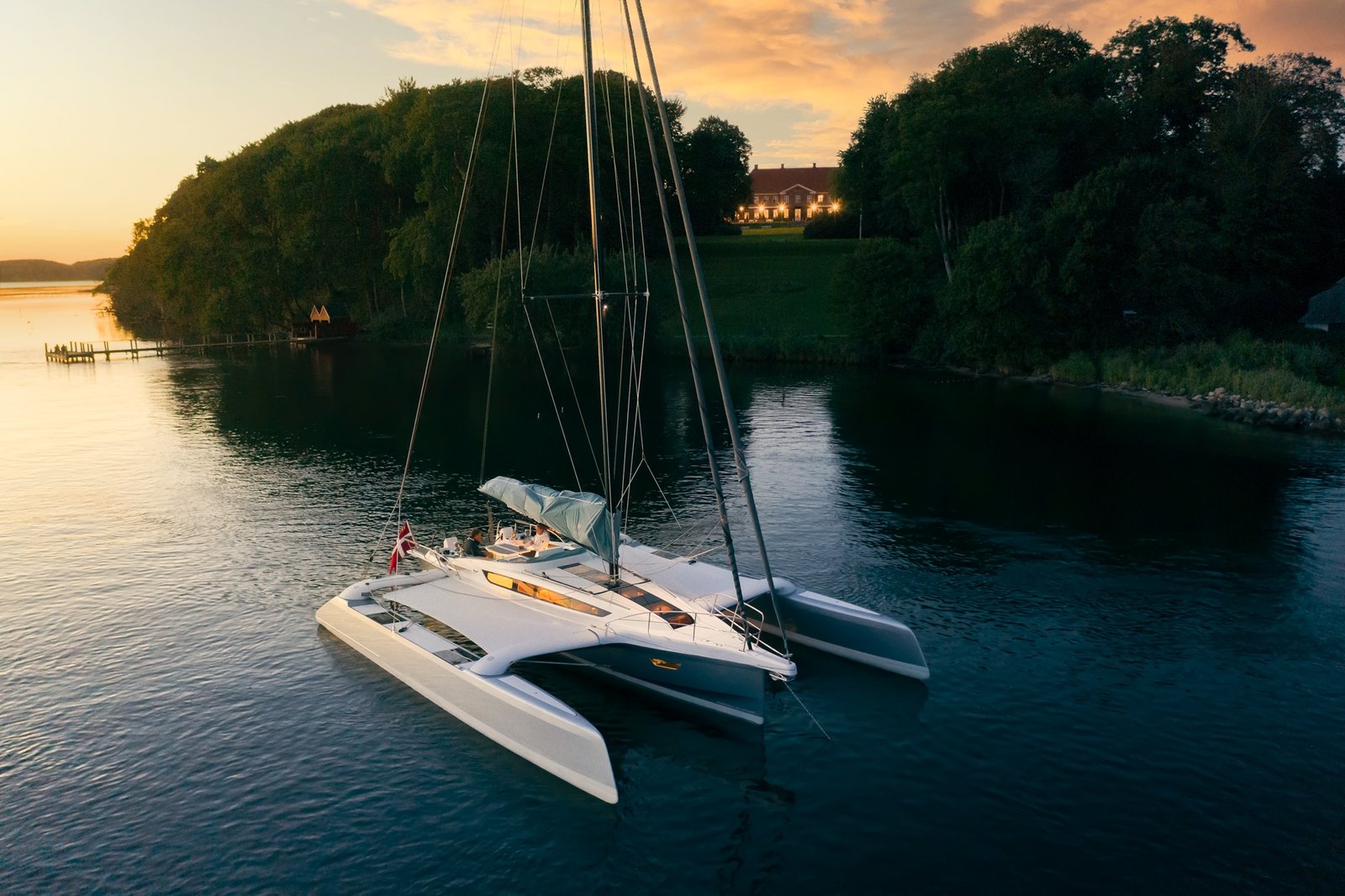

Dragonfly 40

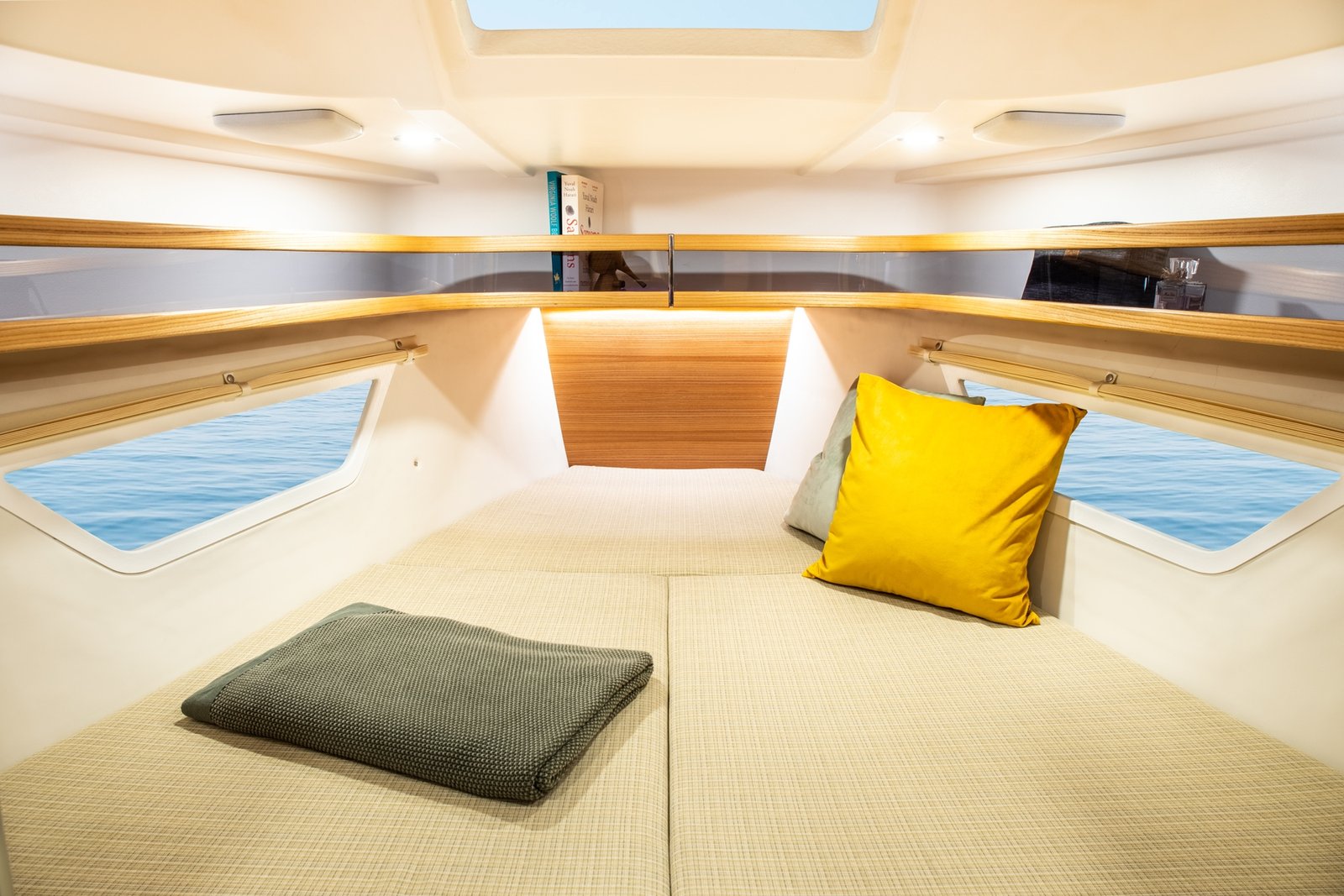

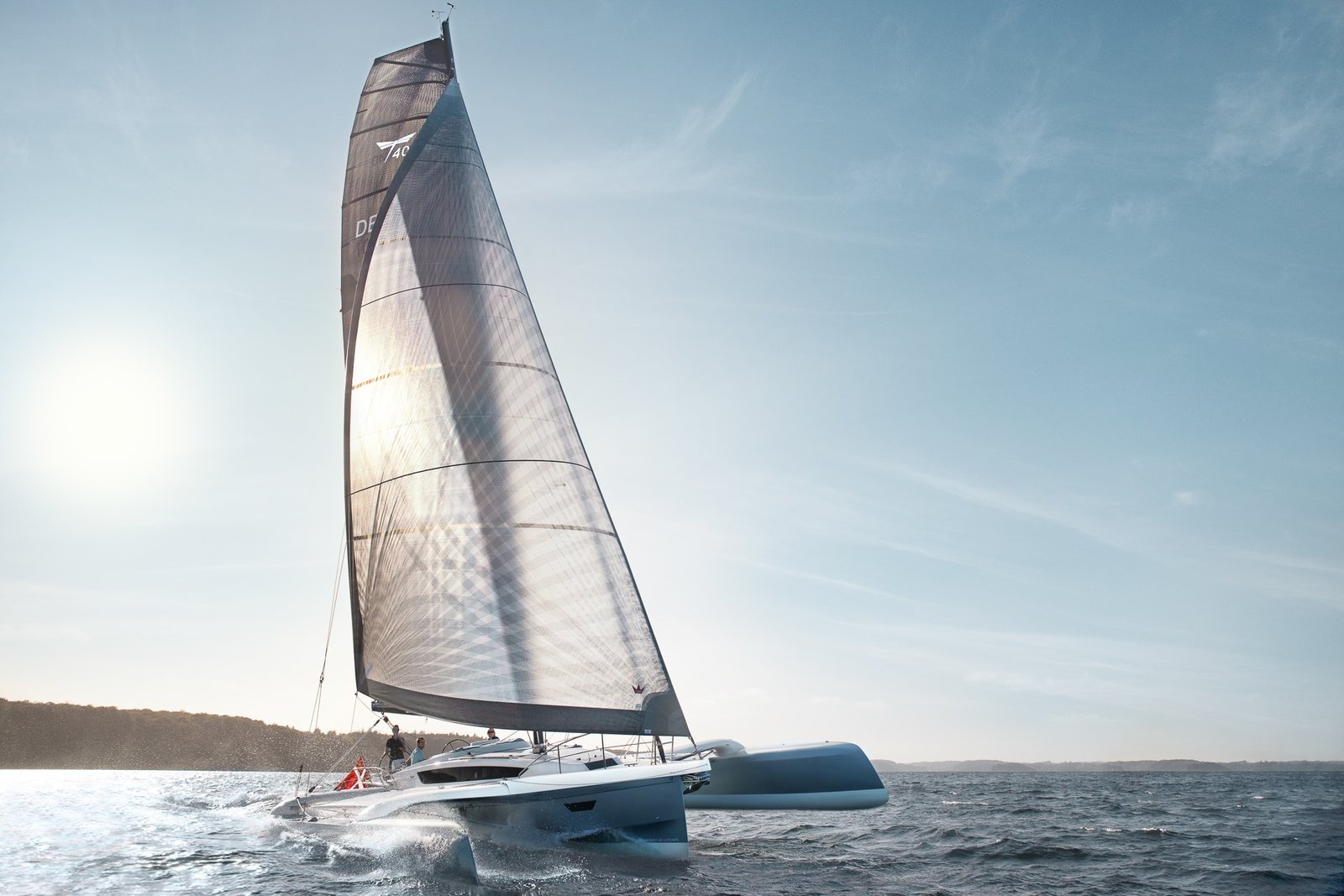

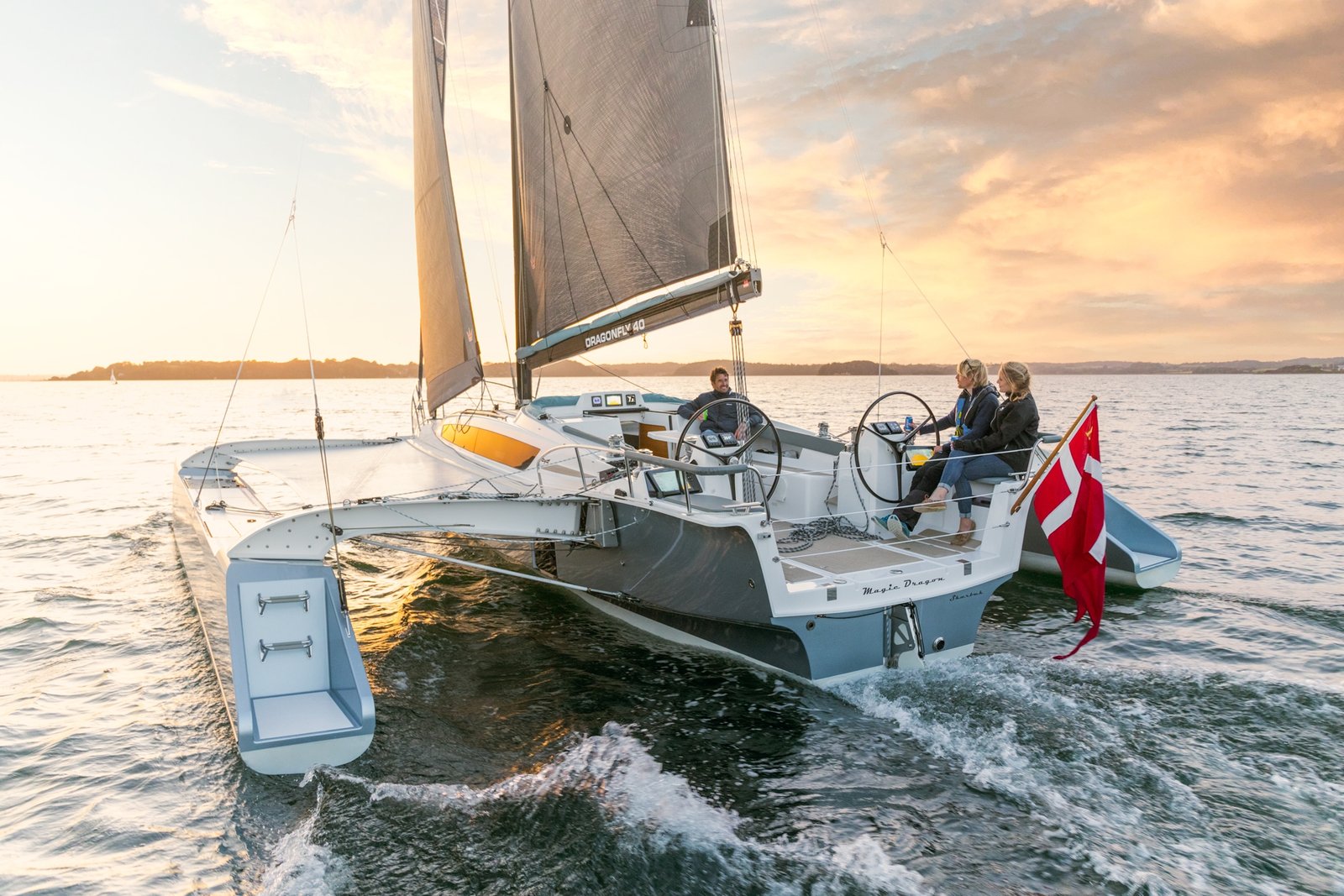

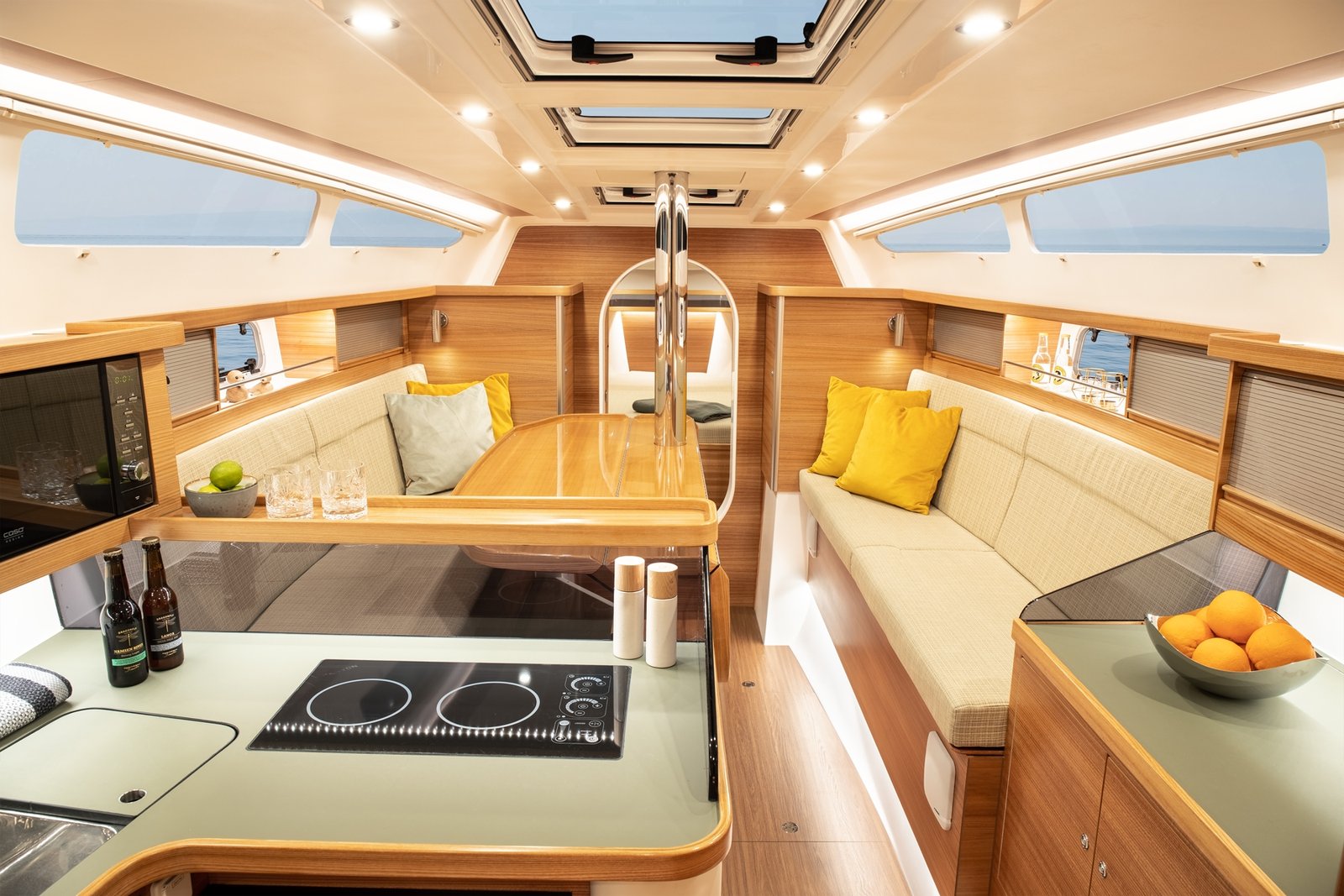

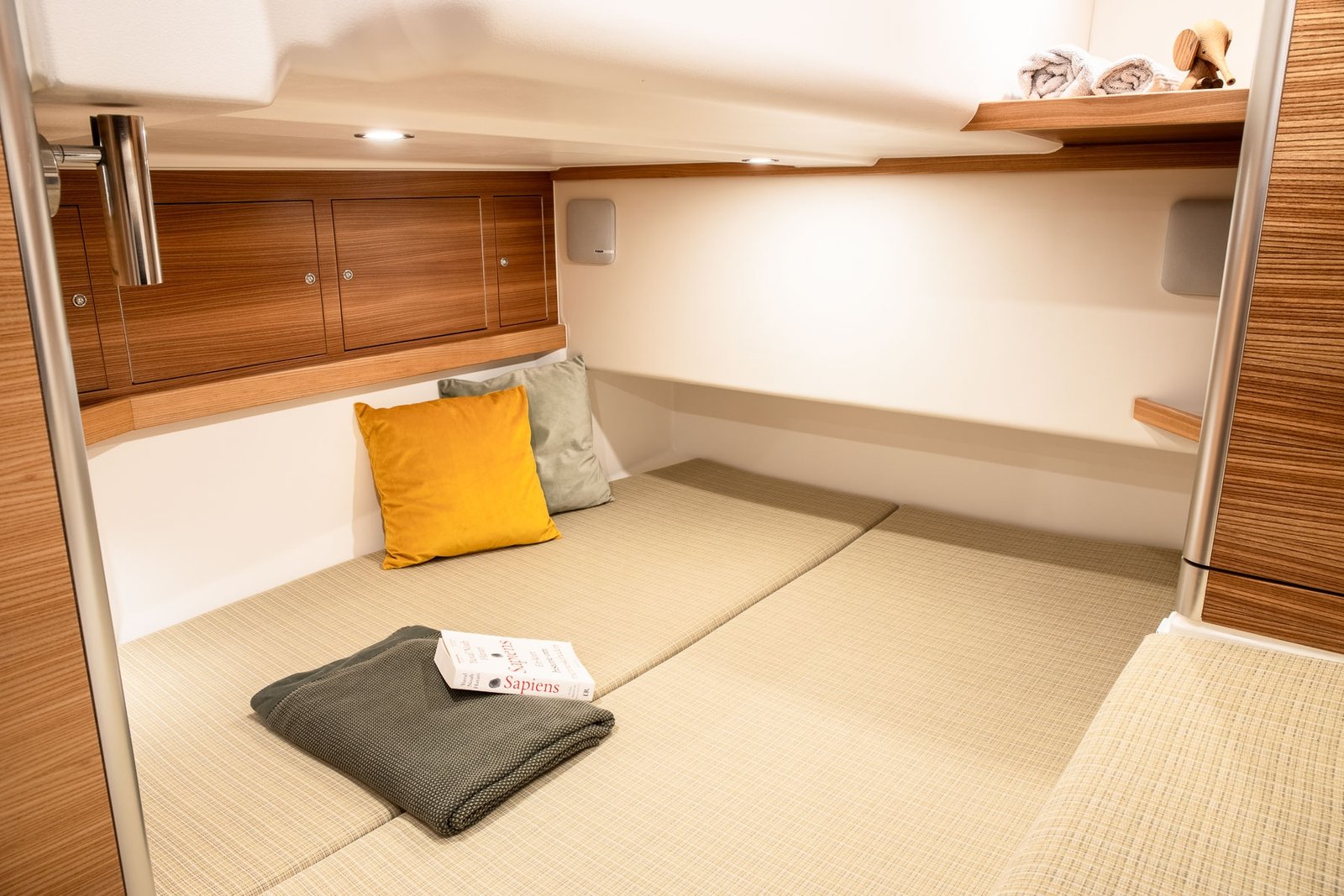

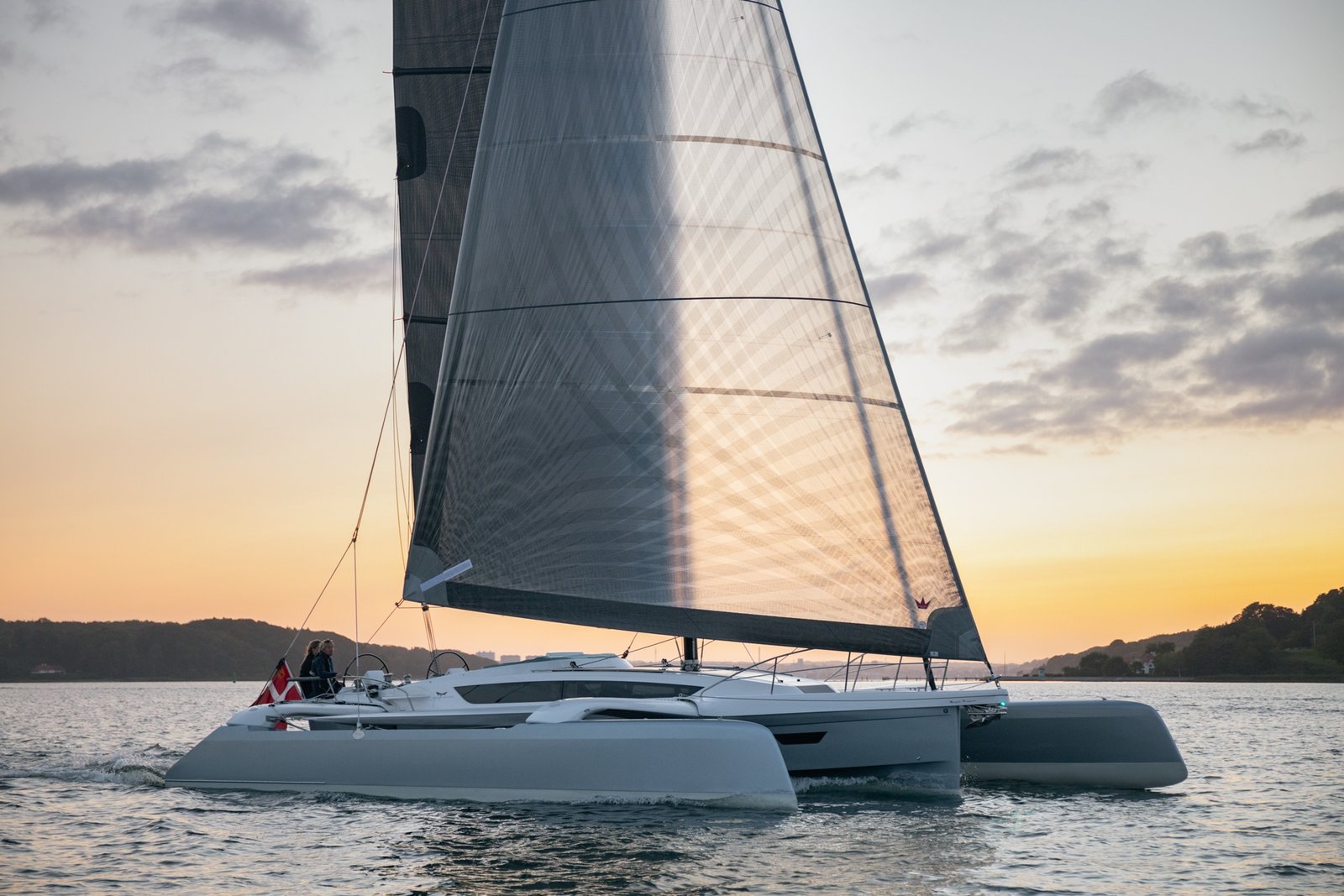

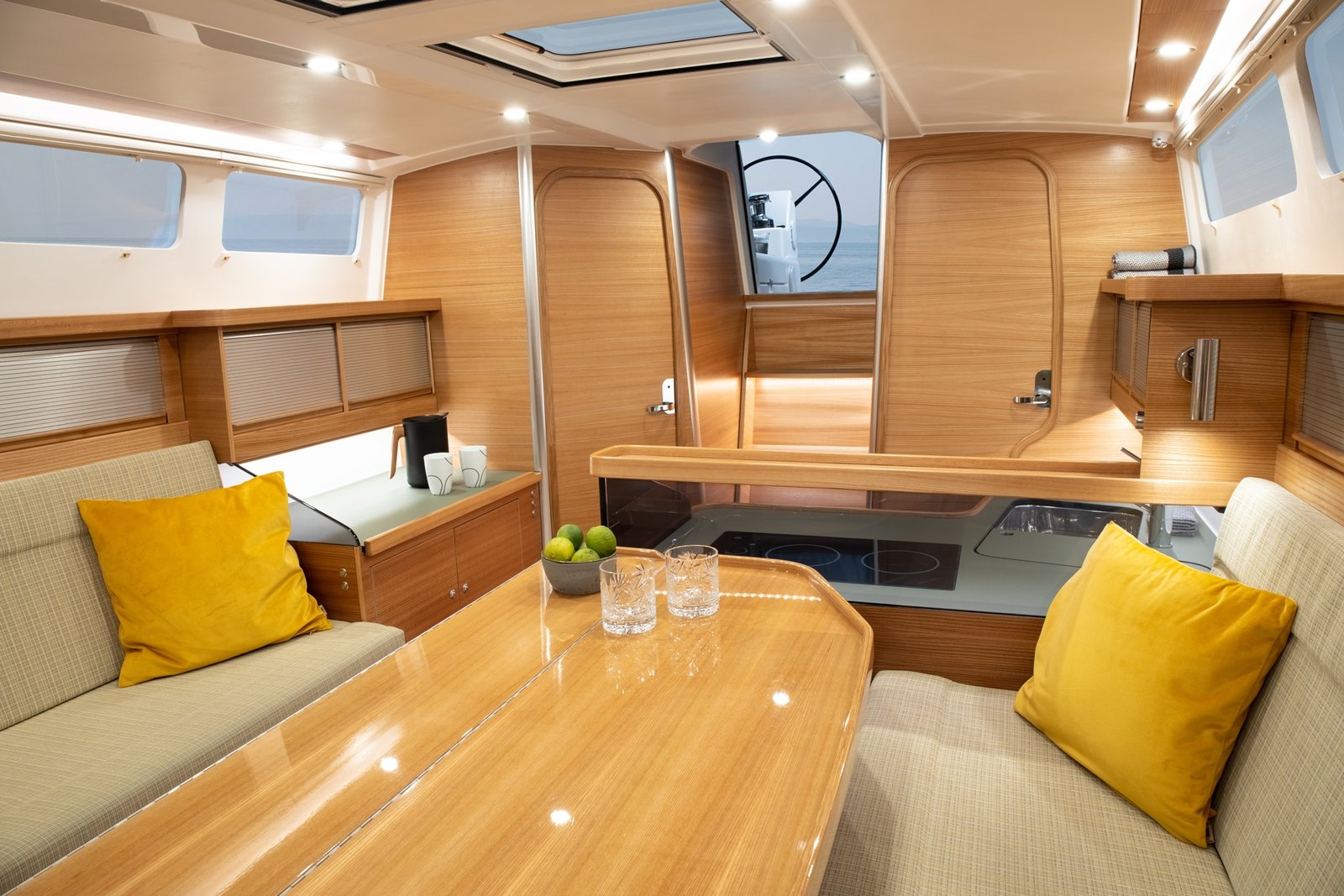

The all-new Dragonfly 40 Performance Cruiser is cutting edge design with focus on easy handling and shorthanded sailing. Spacious cockpit and a stylish, modern interior. Setting new standards for comfortable and safe family offshore sailing.The Dragonfly forty is available in four versions, the standard Touring version with self-tacking jib, the Ultimate version has a taller and more powerful rig and larger overlapping furling headsail for higher performance, the C Ultimate Carbon version with floats-, beams-, forward and aft structual main hull bulkheads and under deck cabin mast support in carbon Pre-Preg system cured in Autoclave and the C Performance version is similar to the C Ultimate version, but with an even taller and more powerful rig and sails. The Dragonfly forty accommodates a crew of 6 to 8 persons.
Dragonfly 40 Specifications
Touring | Ultimate | C Ultimate | C Performance | |
|---|---|---|---|---|
Length, sailing | 12.40 m | 12.40 m | 12.40 m | 12.40 m |
Length, folded | 11.50 m | 11.50 m | 11.50 m | 11.50 m |
Beam, sailing | 8.40 m | 8.40 m | 8.40 m | 8.40 m |
Beam, folded | 4.00 m | 4.00 m | 4.00 m | 4.00 m |
Draft, board up | 0.70 m | 0.70 m | 0.70 m | 0.70 m |
Draft, board down | 2.20 m | 2.20 m | 2.20 m | 2.20 m |
Weight of standard board, sail away | 5,800 kg | 5,800 kg | 4,800 kg | 4,800 kg |
Max payload, inc. crew | 9,000 kg | 9,000 kg | 8,000 kg | 8,000 kg |
Max payload, excl. crew | 7,900 kg | 7,900 kg | 6,900 kg | 6,900 kg |
Water tank | 220 L | 220 L | 220 L | 220 L |
Holding tank | 75 L | 75 L | 75 L | 75 L |
Fuel tank | 150 L | 150 L | 150 L | 150 L |
Inboard motor, standard | 40 HP | 40 HP | 40 HP | 40 HP |
Inboard motor, optional | 57 HP | 57 HP | 57 HP | 57 HP |
Mast height, carbon | 17.00 m | 19.00 m | 19.00 m | 20.50 m |
Mast height over water level, excl. antenna | 18.80 m | 20.80 m | 20.80 m | 22.30 m |
Mainsail | 65 m2 | 75 m2 | 75 m2 | 83 m2 |
Self-tacking jib | 25 m2 | (27) m2 | (27) m2 | 0 m2 |
Furling genoa | (33) m2 | 38 m2 | 38 m2 | 44 m2 |
Code 0 | 65 m2 | 80 m2 | 80 m2 | 90 m2 |
Asymmetrical spinnaker | 120 m2 | 140 m2 | 140 m2 | 150 m2 |
Bowsprit fixed length | 0.75 m2 | 0.75 m2 | 0.75 m2 | 0.75 m2 |
